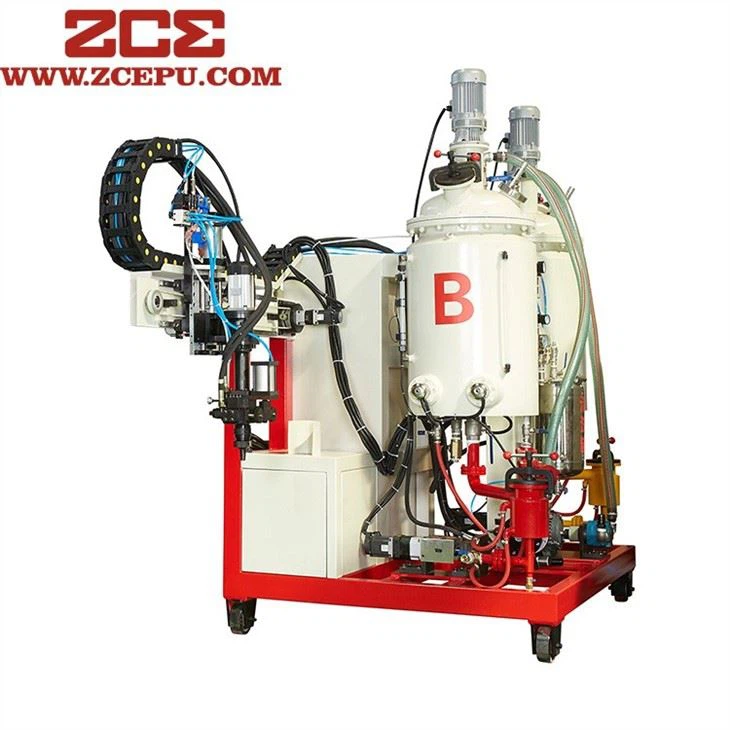

Polyurethane Insulation Board Machine

Machine Description

Machine Model : PU20J-1C

Excellent Features:

(2) the use of high-quality alloy aluminum long spiral mixing head, lightweight and durable, mixed evenly, easy to clean.

(3) pouring head with cantilevered hanging, stirring motor 1.5KW 2P

(4) the motor by frequency control, the mixing head in the mixing chamber in the high-speed rotation, A, B liquid from the respective valve to switch into pouring state, through the throttling into the mixing chamber, switch to return state, the control valve Back to the respective tank.

(5) pouring from the ground height: 1100mm - 800mm

Technical parameters

B tank (phenolic) structure:

An acid-resistant stainless steel liner with argon arc welding, a heated (or cooled) jacket with helical baffle, is covered with a polyurethane foam insulation for constant temperature energy saving.

According to the material and work requirements of B material, the effective volume of 80L (φ400 × 500), the remaining configuration and A tank is basically the same.

Fifth, cleaning system:

Structures: cleaning tank, cleaning solenoid valve, pipeline composition.

⑴ The cleaning tank which storages machine head cleaning agent for the stainless steel 304, the effective volume of 20L.

⑵ with feeding port, one-way valve, vent valve, electrical control intake valve, exhaust valve, with a discharge port (with filter) and discharge mouth.

⑶ pressure gauge for the YZ-type single-ring spring tube, pressure limit of 1.0Mpa.

⑷ level gauge for the tetrafluoride liquid meter, the bottom of the outlet (with filter) and discharge mouth.

⑸ pipe PTFE tube into the outer diameter of 8mm

Quality assurance

A. The seller's warranty period for normal use of the equipment is one year, except for wearing parts. The warranty period is calculated from the date of loading the equipment. During the warranty period, the seller shall provide free maintenance and replacement of parts for equipment damage under normal operating conditions.

B. During the use of the equipment, the buyer shall strictly follow the instructions and operating procedures provided by the seller. In case of damage caused by illegal use, the buyer shall bear the economic loss.
